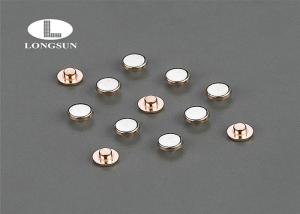

1. Product name:electrical pure silver solid contact rivets moving contact tips for microswitch
Solid Electrical Contact Rivet:
Ag, Cu, AgNi, AgCdO, AgSnO
2. Details:
A). Certification: ISO9001, SGS,ROHS
B). Main material:Ag, FAg, AgCdO, AgNi, AgSnO2, CuNi, etc
C). Types: Solid rivet, Bimetal rivet, Tri-metal rivet, etc.
D). Shapes:Flat head, Round head
| item | head diameter
D(mm) | head thickness
T(mm) | layer diameter
S(mm) | shank diameter
d(mm) | Shank length
L(mm) | sphere radium
SR(mm) | mold ratio
8(°) |
specifi
-cation | 2.5 | 0.6.,08,1 | 0.3-0.4 | 1.2,1.5 | 1─2 | 4,6 | 9 |
| 3 | 0.8,1.0,1.2 | 0.35-0.5 | 1.5 | 6,8 |
| 3.5 | 1.5,2 | 1─3 |
| 4 | 1.0,1.2,1.5 | 2 | 8,10 |
| 4.5 | 2.0,2.5 |
| 5 | 1.0,1.2,1.5,2.0 | 0.4-0.6 | 2.5 | 10,15 |
| 5.5 | 2.5,3.0 |
| 6 | 3 | 15,20 |
| 6.5 | 1.2,1.5,2.0 | 0.5-0.7 | 3.0,3.5 |
| 7 | 3.5 | 20,25 |
| 8 | 4 |
head ancshank
coaxiality | ±0.1 | ±0.05 | S≤0.4+0.06
S＞0.4-0.06 | -0.12 | ±0.15 | ±0.2R | ±2 |
| head diameter(mm) | 2.5-3.0 | 3.0-6.0 | 6.0-8.0 |
| coaxiality | 0.12 | 0.15 | 0.2 |
3. Features:
A) Improve the contact rivet riveting performance.
B) solid contact rivets have low resistance,high electrical conductivity.
C) Apply continuous automation production.
4. Application
Electrical rivets contact are widely used in automobile electric appliances,household appliances,relays,contactors,thermostat,all kinds of switch,aviation appliances,timer and electronic appliances
5. manufacturing process
6. Quality Control:
We test our electric contact before delivering,containing testing the Density,Hardness, Constitution Drigram. We make sure that all our electric contact are 100% good. All production process will be in strict accordance with ISO9001:2000 standard.
7. Packing and Delivery
Inside:Vaccum plastic bag
Outside:Carton according to customers’ request
Delivery: within 15 days
