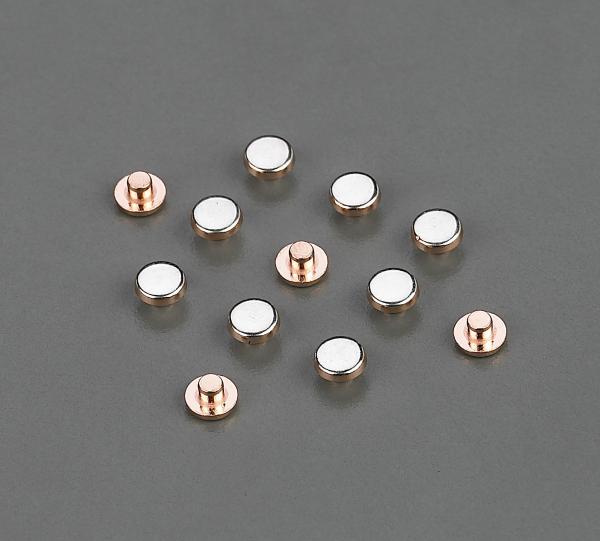

Low Voltage Appliances Electrical Contact Rivets

  • 1
  • 2

Brand Name : LONGSUN

Model Number : LS-MD-004

Certification : SGS, ISO9001,ROHS

Place of Origin : CHINA

MOQ : 1000PCS

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 2,000,000 pieces / month

Delivery Time : Within 15 days

Packaging Details : Standard: Inside - Vaccum plastic bag; Outside - Carton / Negotiable

Properties : Low resistance,high arc erosion resistance,long electric life

Application : Relay, connector, middle and small capacity low voltage breaker, DC/AC switch, drive protective switch, protective switch etc.

Materials : AgW,AgNi,AgCdO, AgNiC,AgWC,Cu,Fe

Products service : Clean with no burr

Test Equipments : Colored Microscope,3D coordinator Apparatus, Hardness Test Machine,etc

Sample service : Free sample available

Contact Now

Electrical Contact Rivet Used in Low-voltage Appliances; RoHS Approved.

1. Product name: Contact Rivets

Other name: Silver Contact Rivets, Contact Point, Electrical Contact, Contact Tips, Contact Sheet.

2. Type and materials

material specification(Wt%) density
≥g/cm3		 resistance
≤μΩ.cm
Ag Ni SnO2 In2O3 ZnO CdO
Ag 99.95 ── ── ── ── ── 10.48 1.8
FAg 99.85 0.15 ── ── ── ── 10.48 1.9
AgNi(10) 90 10 ── ── ── ── 10.2 2
AgNi(15) 85 15 ── ── ── ── 10.1 2.1
AgNi(20) 80 20 ── ── ── ── 10 2.3
AgCdO(10) 90 ── ── ── ── 10 10 2.3
AgCdO(12) 88 ── ── ── ── 12 9.95 2.4
AgCdO(15) 85 ── ── ── ── 15 9.8 2.5
AgCdO(17) 83 ── ── ── ── 17 9.7 2.6
AgSnO2(8) 92 ── 8 ── ── ── 9.9 2.2
AgSnO2(10) 90 ── 10 ── ── ── 9.8 2.3
AgSnO2(12) 88 ── 12 ── ── ── 9.7 2.4
AgZnO(8) 92 ── ── ── 8 ── 9.4 2.5
AgZnO(10) 90 ── ── ── 10 ── 9.3 2.6
AgSnO2(5)in2o3(5) 92 ── 5 3 ── ── 9.9 2.3
AgSnO2(6)in2o3(4) 90 ── 6 4 ── ── 9.8 2.4
AgSnO2(7)In2O3(3) 90 ── 7 3 ── ── 9.8 2.4
AgSnO2(8)In2O3(4) 88 ── 8 4 ── ── 9.7 2.5
AgSnO2(9)In2O3(4) 87 ── 9 4 ── ── 9.6 2.6
AgSnO2(10)In2O3(4) 86 ── 10 4 ── ── 9.5 2.7

Low Voltage Appliances Electrical Contact Rivets

3. Product Specifications:

A). Certification: ISO9001, SGS,ROHS

B). Main Material: Ag, FAg, AgCdO, AgNi, AgSnO2, CuNi, etc

C). Types: Solid rivet, Blind rivet, Bimetal rivet, Tri-metal rivet, etc.

D). Shapes: Flat head, Round head

4.Application

Electrical rivets contact are widely used in automobile electric appliances,household appliances,relays,contactors,thermostat,all kinds of switch,aviation appliances,timer and electronic appliances
